#MJG-235 In Stock

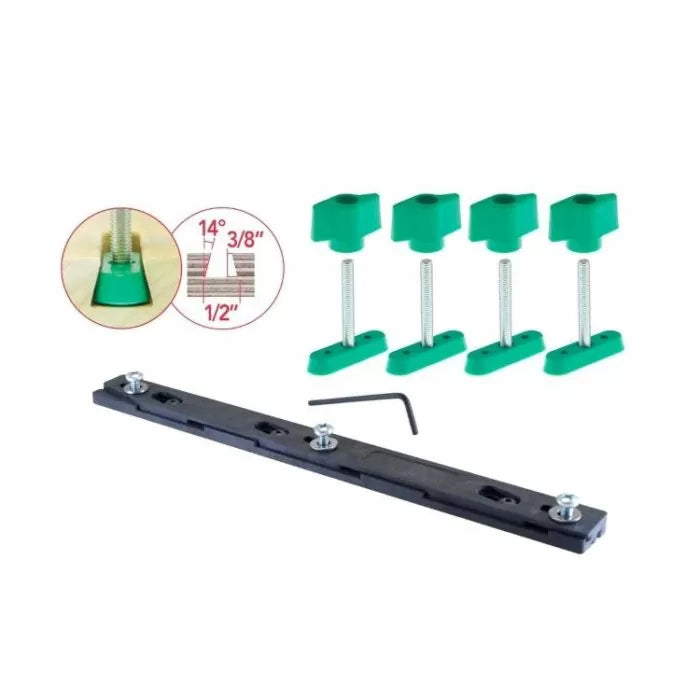

MICROJIG ZEROPLAY 360 Sled Kit w/ MATCHFIT Dovetail Hardware

$29.90

Options

MICROJIG ZEROPLAY 360 Sled Kit w/ MATCHFIT Dovetail Hardware Includes (1)ZEROPLAY Top Guide Bar ; (1)ZEROPLAY™ Bottom Guide Bar ; (3)#8-32 x 3/16” Button Head Screws ; (1)3/32 Hex Wrench; (3)#8-32 x 1/2” Pan Head Machine Screws; (3)#10 Flat Washers; (4)10-32 1-1/2” Track Screws; (4)10-32 Wing Knobs

#MJG-213 In Stock MICROJIG MATCHFIT Dovetail Bit with 1/2" Shank $32.90 Includes (1)14°, 1/2" Diameter, 1/2" Shank Dovetail Bit With Specialty Roundover Relief Profiles
#100-548 In Stock MICROJIG Matchfit Dovetail Clamps $45.90 Includes (2)MATCHFIT Standard Dovetail Clamps
#MJG-221 In Stock MICROJIG MATCHFIT Dovetail Clamp AP $31.90 Includes (1)MATCHFIT Dovetail Clamp AP; (1)X-Pad Clamping Foot
#MJG-223 In Stock MICROJIG MATCHFIT X-Pad Accessory (4-Pack) $13.90 Includes (4)MATCHFIT X-Pad Clamping Feet
#MJG-231 In Stock MICROJIG MATCHFIT Dovetail Clamp Pro $89.90 Includes (2)Standard Dovetail Clamps; (1)Setup Gauge; (1)1/2" 14° Dovetail Router Bit (1/2" Shank); (1)Dovetail Clamp Pro Manual; (1)Dovetail Hardware Variety Pack
#MJG-233 In Stock MICROJIG MATCHFIT Dovetail Hardware Variety Pack $16.90 Includes (2)10-32 x 1-1/2” Dovetail Track Screws; (2)10-32 x 1” Dovetail Track Screws; (2)10-32 Female Dovetail Track Nut; (2)10-32 Wing Knobs; (2)10-32 Round Knobs; (2)Nylon Shoulder Washers; (2)10-32 x 3/4" PH Screws; (2)#10 Flat Washers
#MJG-235 In Stock MICROJIG ZEROPLAY 360 Sled Kit w/ MATCHFIT Dovetail Hardware $29.90 Includes (1)ZEROPLAY Top Guide Bar ; (1)ZEROPLAY™ Bottom Guide Bar ; (3)#8-32 x 3/16” Button Head Screws ; (1)3/32 Hex Wrench; (3)#8-32 x 1/2” Pan Head Machine Screws; (3)#10 Flat Washers; (4)10-32 1-1/2” Track Screws; (4)10-32 Wing Knobs

FAST Shipping If You Order In The Next 3 hours 23 minutes.

100% Quality Guarantee

Price Match Guarantee

Free Shipping over $100

Details

Questions & Answers

Details Questions & Answers

If you make your jigs and fixtures, you've probably dealt with T-Track. T-Track is great, but it's not always immediately available, it isn't cheap, and it doesn't always suit the situation (just run into it with an expensive router bit if you need proof). Enter MicroJig's MATCHFIT dovetail-slot jig, fixture, and clamping system. MATCHFIT is comprised of various hardware and specialized clamps designed to slide into a 14°, 1/2" dovetail slot making any surface a clamping surface. Any 14°, 1/2" dovetail bit can be used with the hardware and clamps, but the dovetail slot created by their specialized bit is as strong as t-track and is more stable and easier to cut than slots created by t-slot bits. With the MATCHFIT system, pretty much any jig, clamping apparatus, or sled can be created on the fly.

Features:

Specialized MATCHFIT Dovetail Bit (MJG-213) — ideally suited to rout clamping slots. Standard 14°, 1/2" dovetail bits will work, but this bit leaves a 1/32" round-over relief at the bottom of the slot to strengthen the walls of the slot and allow the clamps and hardware to slide more smoothly. It also creates a 1/16" relief at the top of the slot to prevent tearout and the sort of binding that could compromise the structural integrity of the groove. The MGJ-213 Dovetail bit also has markings that show you exactly where to position the bit for the perfect depth of cut.
MATCHFIT Dovetail Clamps — designed to match perfectly with 14°, 1/2" dovetail slots and create a hold-down clamp wherever you need one.
- MATCHFIT Standard Dovetail Clamp Pair (100-548) - The original MicroJig MATCHFIT Dovetail Clamps
- MATCHFIT Dovetail Clamp AP (MJG-221)- MicroJig's latest Dovetail Clamp. It has a larger clamp capacity, comes standard with an X-Pad foot, and has an Anti-Pivot Spring that keeps the clamp arm from dropping during repetitive clamping operations.
- MATCHFIT X-Pads 4-Pack (MJG-223) - The X-Pads allow the dovetail clamps to create downward and lateral pressure thanks to the 60° stabilizing edge. They also have specialized crosshatching that allows clamping of round objects and pressure transfer on oddly shaped workpieces to prevent slippage. The 4-Pack will enable you to replace damaged pads or upgrade your standard MATCHFIT dovetail clamps.
MATCHFIT Hardware Packs — open up even more opportunities for jig creation.
- MATCHFIT Dovetail Clamp Pro (MJG-231) - Everything you need to create your own tracks on virtually any surface. Make every inch of your shop more functional.
- MATCHFIT Dovetail Hardware Variety Pack (MJG-233) - An entire system designed to give you all the functionality of t-track and t-track accessories at a fraction of the cost.
- MicroJig ZEROPLAY 360 Sled Kit w/ MATCHFIT Dovetail Hardware (MJG-235) - Combines the ease and accuracy of ZEROPLAY Miter Bars with the versatility of MATCHFIT Dovetail Hardware. Perfect for creating customized table saw and router table sleds.
