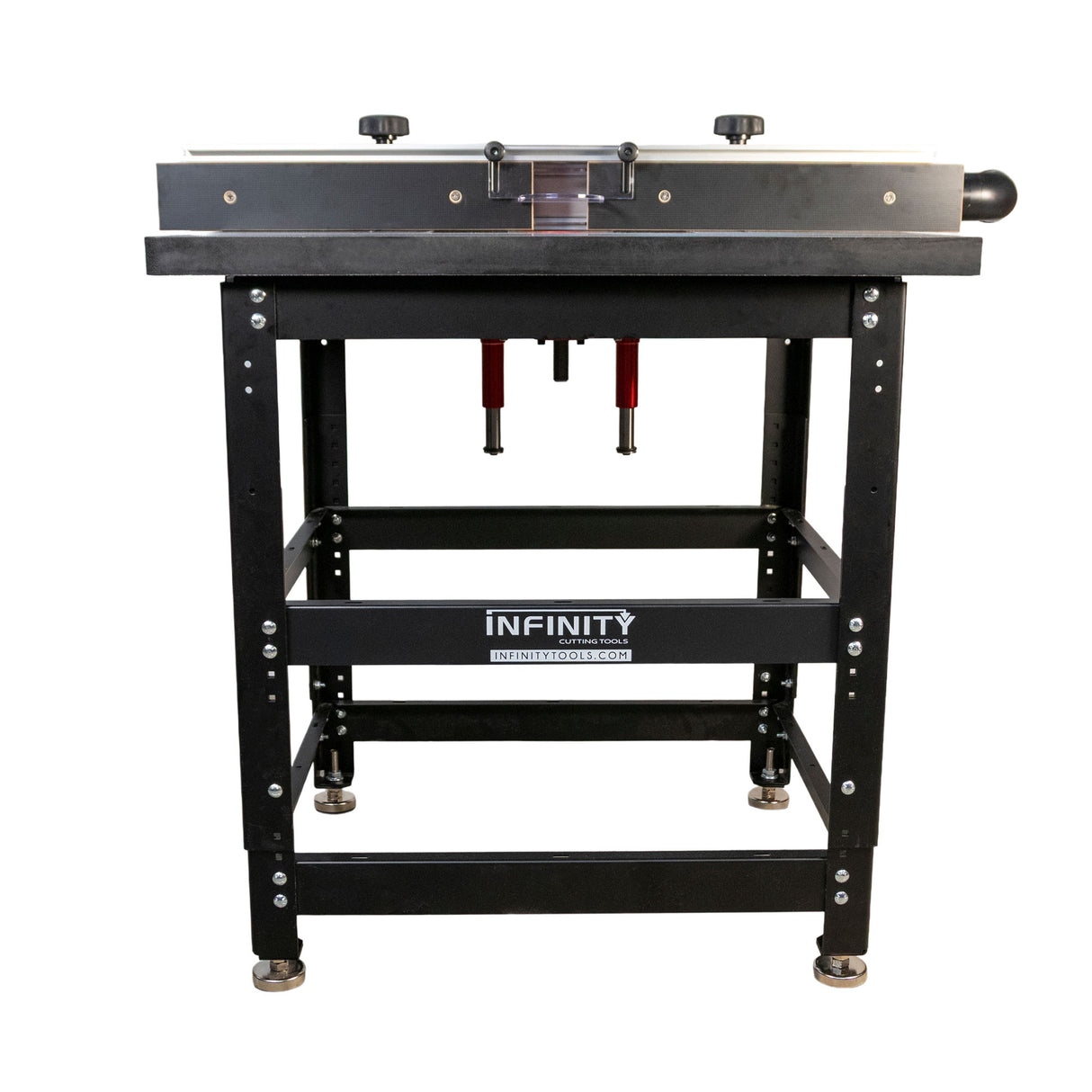

Premium Quality Pro. Router Table Package w/ Cast Iron Top, JessEm Mast-R-Lift II (02120) & Triton 3-1/2 H.P. Motor (TFBR001MOTOR)
Infinity Tools Professional Router Table Packages put you in total control of your woodworking projects. The RTP-106 gives you the highest quality components for the stand, cast iron top and fence that are on our RTP-104, but we've added the Jessem Mast-R-Lift II (02120) and Triton's impressive 3-1/2 H.P. router motor – all for one unbeatable price. We’ve designed our router table packages to withstand the rigors of the most demanding professional woodworking environment and also be easy enough to use in your home wood shop. Customize your router table package by adding our exclusive accessories and you’ll have the latest in routing technology at your fingertips.
Check out our great Router Table Accessories
Our Pro. Router Table Package RTP-106 Includes;
(RTT-006) Cast Iron Top
This top is made from a solid piece of cast iron and then machined and polished flat to within .010" across its entire surface, that's flat! Measuring a full 32" wide x 24" deep and weighing in at over 100 lbs, this router table kills vibration dead in its tracks. The large work area gives you plenty of space to tackle your toughest routing jobs with ease and its standard 9-1/4" x 11-3/4" opening fits most router plates and lifts on the market. The underside of the table has been pre-drilled to easily and quickly accept the Infinity Tools Heavy Duty Tool Stand and Infinity Tools Dust Cube.
If you'd prefer to use a different fence, the bottom of the table is also predrilled to accept a JessEm-style router table fence. The top of the table is drilled and tapped to accept Infinity Tools Micro Adjust (PRTF-MAK) and Mini Power Feeder (MPF-001). RTT-006 also features a precision machined miter slot and universal t-slot. The miter slot accepts all standard 3/4" and 3/8" miter gauges while the t-slot accepts standard ¼”-20 hex bolts, ¼"-20 t-bolts, and 5/16” t-bolts. The t-slot is perfect for attaching home made and store bought fixtures and really increases the versatility of our router table top. The 9-1/4" x 11-3/4" router plate cut out is perfectly matched to accept router plates and router lifts from most manufacturers.
(HTDS-001) Infinity Tools Heavy-Duty Tool Stand
Our Heavy-Duty Tool stand towers above the competition. The 22-1/2” deep x 26-1/2” wide stand is made of 2mm & 3mm thick powder-coated steel and is height adjustable from 22-1/4” to 43-3/4” tall in 1” increments. With this level of adjustability, you’ll be able to get your router table to the perfect height for all-day work in the shop. The included leveling feet allow for a perfect setup on uneven shop floors and create a rock-solid foundation.
(PRTF-200) Pro Router Table Fence
The Infinity Pro Router Table Fence is made of anodized, heavy-walled, extruded aluminum. Our completely reengineered fence is based around a single robust 3-3/16” X 3-3/16” square extrusion. This design innovation improves stability, squareness to the table and workpiece, and above-the-table dust collection capability. The cut-out in the middle of the extrusion is large enough for even the widest router bits. In conjunction with the oversize cutout, the replaceable fence faces can be repositioned along the length of the fence to best accommodate your bit diameter. Unlike inferior MDF fence faces found on competitor products, our fence is fitted with ¾” thick, Micro-Dot Plycore material. The extra lubricity of our Micro-Dot covered faces allow your workpiece to glide effortlessly, and the stability and flatness of the plywood core combine for years of trouble-free service. The top rail extrusion comes with two (2) 17.5” metric and imperial scale rules and has a built-in ¼" x 20 t-track that works with any compatible fixture or hold-down. Positioned to the end of the fence, and integrated as part of the hollow center of the fence extrusion, the new dust collection port keeps your dust collection hose out of the way and improves suction by creating a stronger vacuum in the empty cavity. The tall and comfortable rubberized locking knobs make busted knuckles a thing of the past.

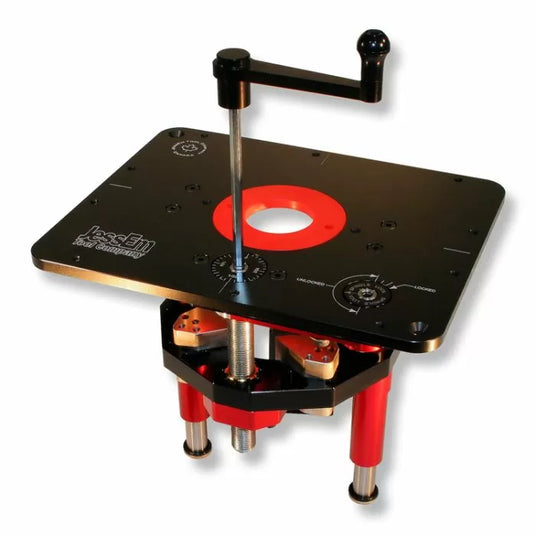

Gone are the days of having to purchase separate router pads to accommodate your specific router when using a lift. The JessEm Mast-R-Lift II router lift now accepts 18 different router motors straight out of the box, the ultimate convenience. Make bit changes and height adjustments with a simple twist of the convenient speed crank, from above the table! The heavy duty aluminum insert plate measures 9-1/4" x 11-3/4" x 3/8" thick and is precision CNC machined to guarantee flatness. The handle of the speed crank raises and lowers the bit a total of 3-3/4" with 1/16" resolution per rotation with adjustments as fine as .002" possible. The plate features a 3-5/8" diameter center hole that will accommodate even the largest raised panel router bits. Comes with a 1-1/2" insert ring as standard, additional insert rings are available separately.
Triton's powerful 3-1/4 hp electronically controlled woodworking router motor with soft start technology is perfect for table-mounted use. Fits in many router lifts (see below) and is designed for heavy-duty routing applications like making raised panel doors, rail and stile joinery and runs your largest diameter router bits with ease. It's the same diameter as the now discontinued Porter Cable 7518 so it'll fit in many router lifts.
Key Features Include:
- 4.2" diameter is the same as the Porter Cable 7518
- Powerful 3 1/4 HP (15A) electronically controlled motor
- RPM range from 8,000 to 20,000 - Perfect for all of your router bits
- Automatic spindle lock for fast and easy bit changes with one hand
- Soft start electronically controlled variable speed is ideal for all diameter router bits
