Multi-Layer Inlay Systems for Decorative Wood Inlay Work

Wood inlay is one of the most striking ways to personalize a furniture piece, serving tray, box, or cutting board. Multi-layer inlay systems make this technique accessible to woodworkers at any skill level by providing precision-cut templates that guide the router through each layer of the design in exact registration. The result is a crisp, professional inlay with perfectly fitted layers of contrasting wood.

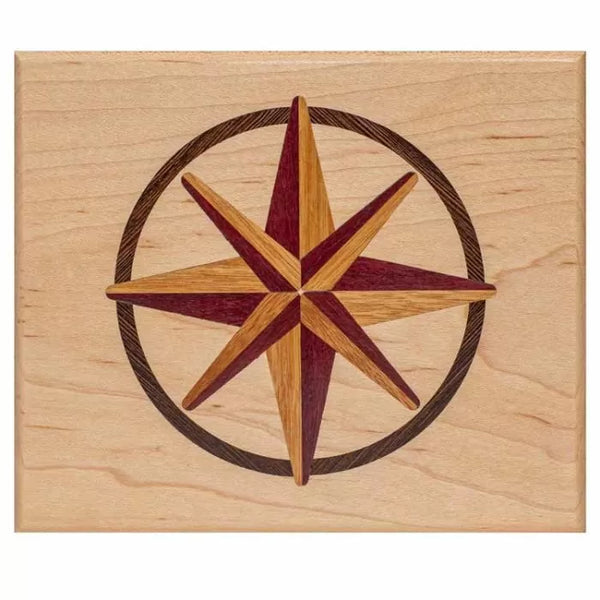

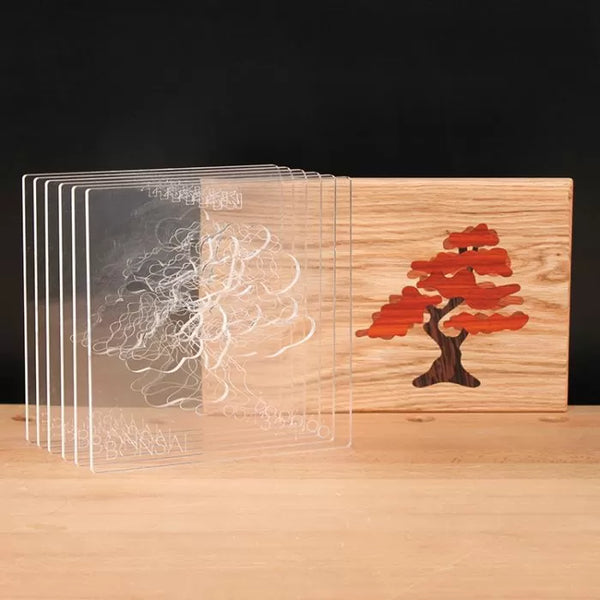

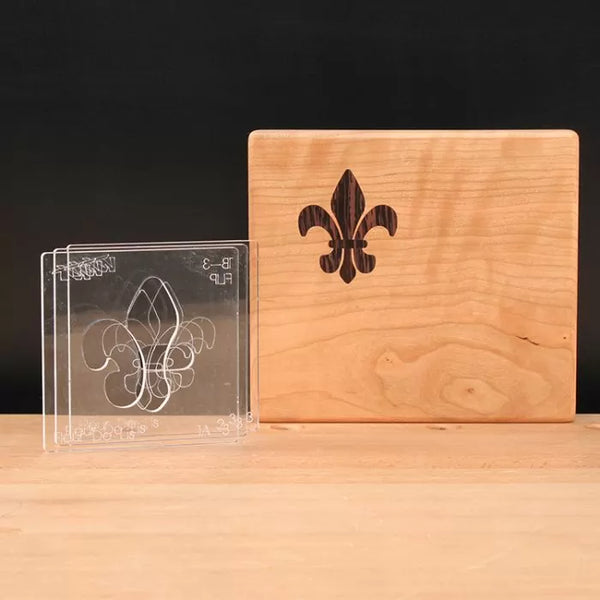

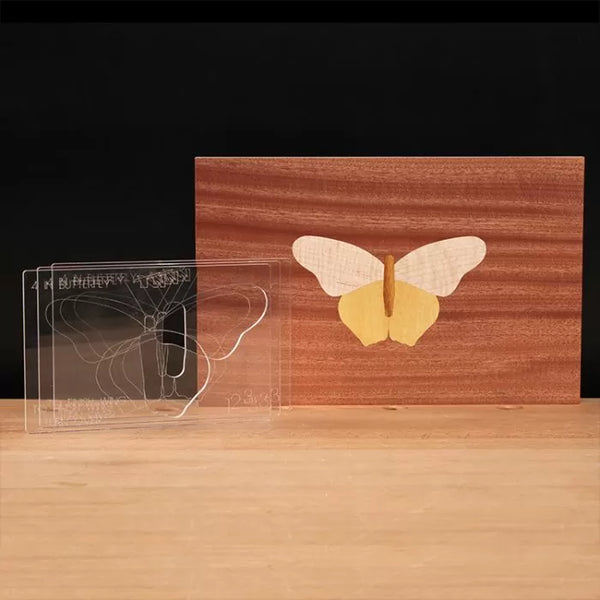

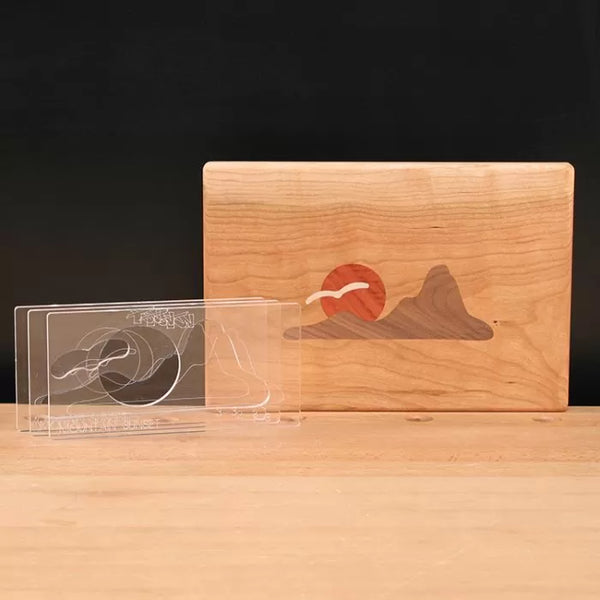

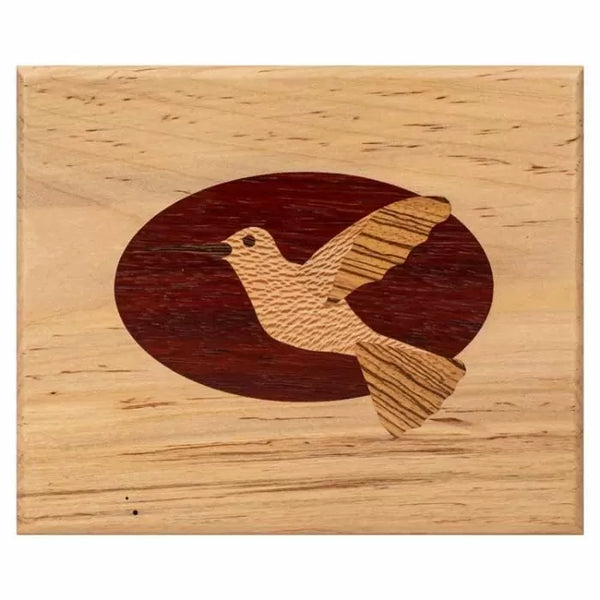

Each system in this collection includes the templates and instructions needed to complete a specific design. Patterns range from classic geometric forms like the 4 Compass Rose and 10 Compass Rose to naturalistic subjects like the Hummingbird, Bonsai, and Mountain Sunset. Decorative options include the Fleur De Lis, Celtic Knot, and the 4 Butterfly and Nested Butterfly designs.

How Multi-Layer Inlay Templates Work

Each template set registers precisely to a center point or edge reference on the workpiece. You rout the recess for the first layer, glue in the contrasting wood, then use the next template to rout the pocket for the second layer on top of the first. Repeating this process builds up the full design with clean, tight-fitting joints between each layer. The accessory package includes the supplemental bits and bushings needed to run any system in this collection.

Over 40 designs including geometric, floral, nature, and traditional motifs
Pre-cut templates ensure accurate registration between layers
Compatible with standard router and guide bushing systems
Suitable for furniture tops, serving trays, boxes, and decorative panels

For technique guides on multi-layer inlay routing, visit the Infinity Tools learning center. Questions about which system suits your project? Contact us for guidance.

Frequently Asked Questions

What is a multi-layer inlay system?

A multi-layer inlay system is a set of pre-cut routing templates designed to create decorative wood inlays with two or more layers of contrasting wood. Each template registers precisely over the previous layer so the routed recesses align accurately, building up a detailed inlaid design in the workpiece surface.

What router and bit do I need for multi-layer inlay work?

Multi-layer inlay templates are designed for use with a plunge router and a straight bit in combination with a guide bushing. The accessory package includes the bits and bushings needed to work with any system in this collection.

How many layers do these inlay systems have?

The number of layers varies by design. Some simpler patterns use two layers of contrasting wood, while more complex designs like the Mountain Sunset or Celtic Knot may use three or more distinct wood layers for a detailed, dimensional appearance.

What wood species work best for inlay contrasting layers?

The most visually striking inlays pair species with strong color contrast: dark walnut against light maple, or padauk against cherry. Use stable, tight-grained species that glue cleanly and stay flat. Avoid species with large open pores that can trap finish at the inlay seams.

Can I use multi-layer inlay templates on a cutting board?

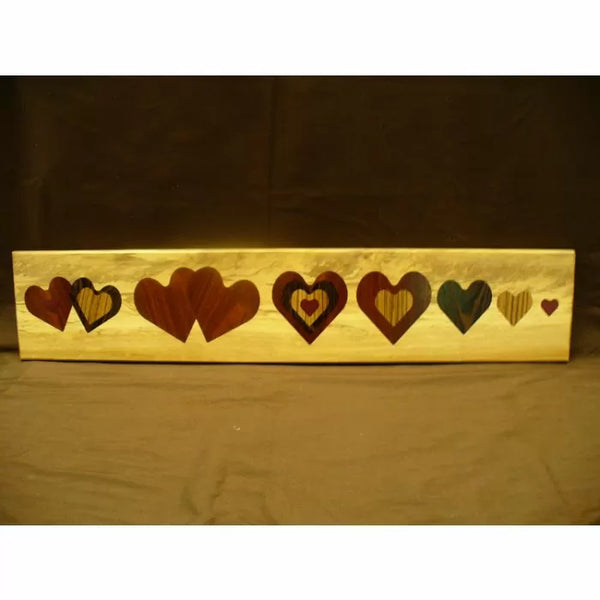

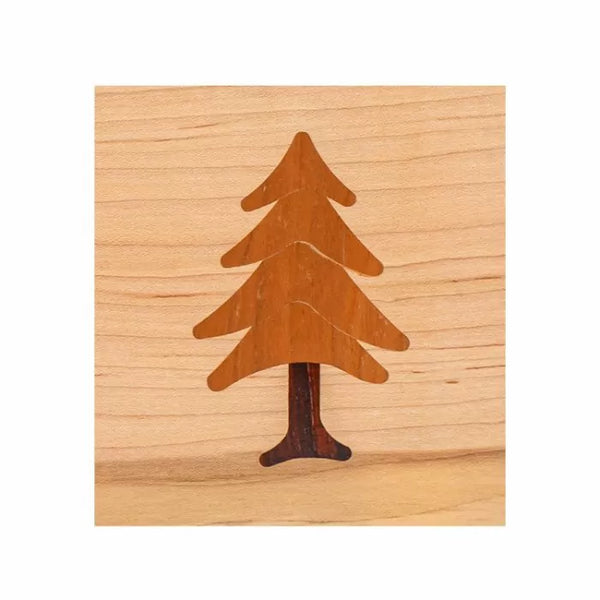

Yes. Cutting boards are a popular surface for decorative inlay work. Use food-safe wood species for all layers and a food-safe finish over the completed inlay. The Nested Heart and 4 Pine Tree designs are popular choices for gift cutting boards.

What is the accessory package and do I need it?

The Multi-Layer Inlay System Accessory Package includes the specialized router bit and guide bushings required to run any inlay template system in this collection. If you do not already own the correct bushing and bit size, this package is recommended.

How do I keep the inlay layers in registration?

Each template in the system indexes off a reference pointtypically a center pin, corner stops, or edge registrationthat keeps every layer aligned to the same datum on the workpiece. Follow the included instructions carefully for each template step to maintain tight layer-to-layer registration.

Are these inlay systems suitable for beginner woodworkers?

Yes. The pre-cut templates do most of the precision work, making multi-layer inlay more accessible than freehand or custom template inlay methods. A beginner with plunge router experience and patience can achieve professional-looking results. The Infinity Tools learning center offers guidance on inlay technique.

What designs are available in the multi-layer inlay collection?

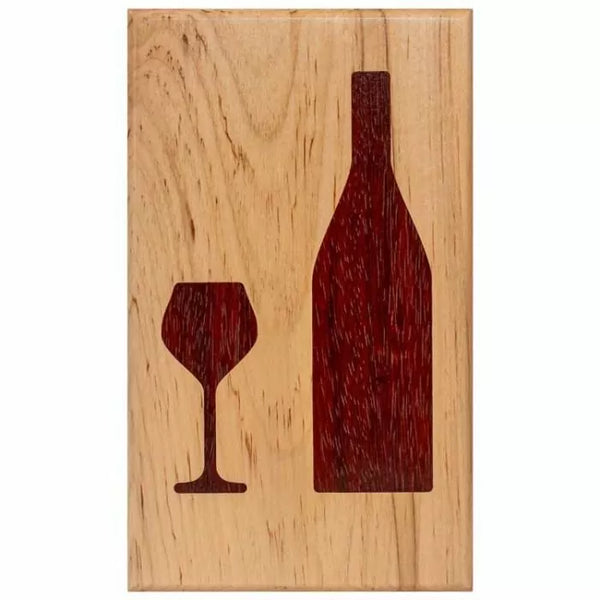

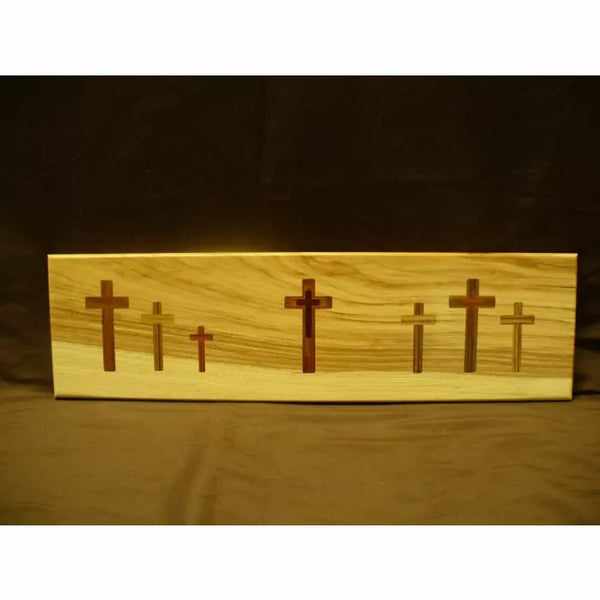

The collection includes over 40 designs: geometric patterns like compass roses and nested crosses, nature motifs like the Hummingbird and Bonsai, decorative patterns like the Fleur De Lis, and lifestyle designs including a wine motif and butterfly patterns.

What shipping options are available for inlay template systems?

Infinity Tools ships most in-stock products quickly. Visit the shipping policies page for current carrier options, delivery estimates, and rate details.
