Insert-Pro Exterior Door Kit

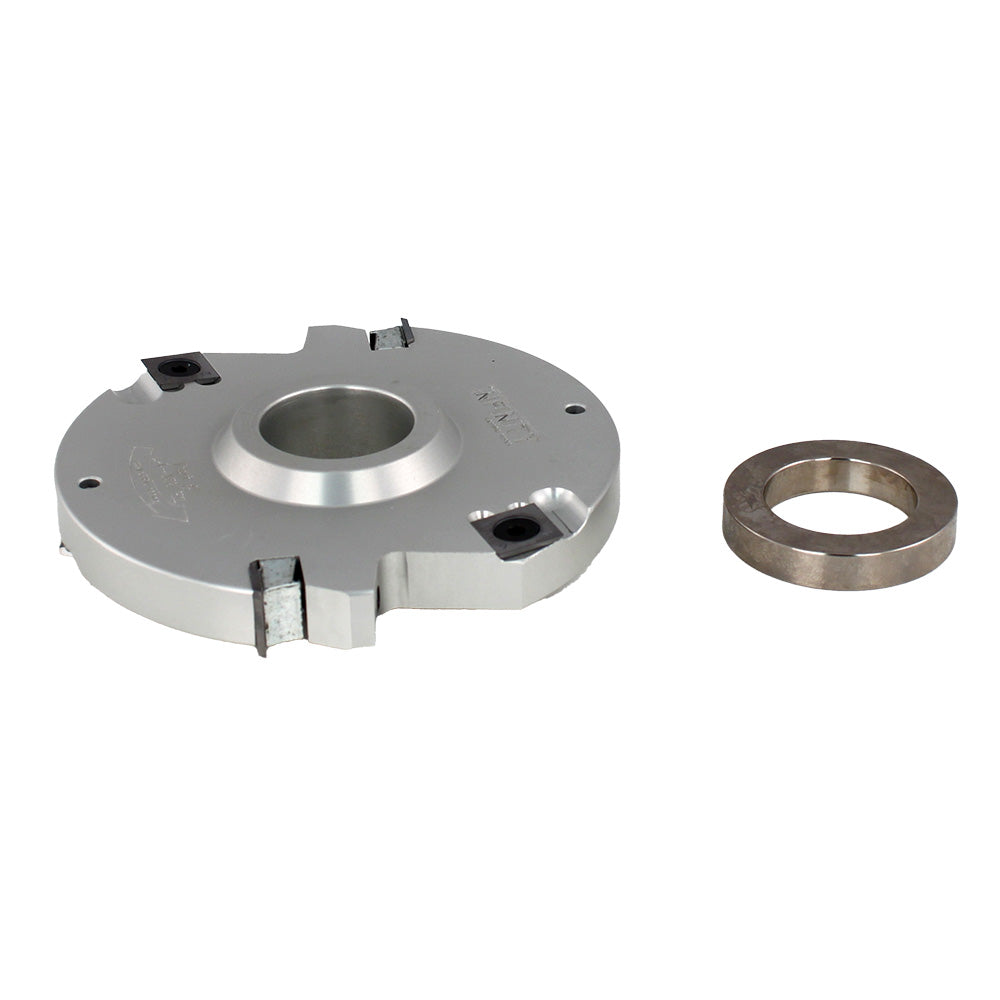

This item is for use with our Insert-Pro Door Making Shaper System. With it, you will be able to make Exterior Doors using stock up to 1-7/8" thick. The kit consists of one (1) steel spacer for the rail assembly and one (1) aluminum head slot cutter for the stile setup that makes a 5/8" kerf groove. The head features four (4) carbide inserts with multiple sides for extended cutting life.

Replacement Insert Pro Knives for this kit can be purchased here.

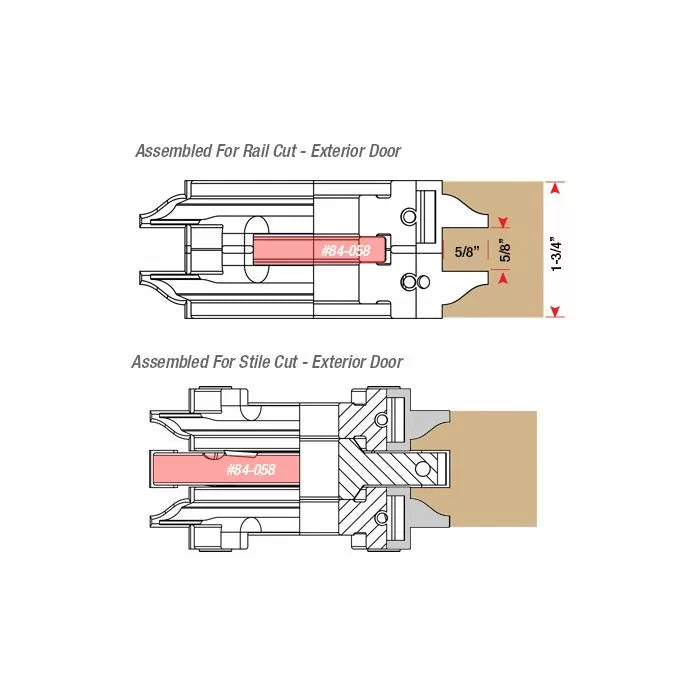

Follow this link to read the instructions for setting up the rail and stile cut for interior and exterior doors

Want to make arched top doors? Pick up an Infinity Tools Rub Collar (RUB-105) here.

Don't forget to read our latest blog post on this great Insert-Pro system!

Features Include:

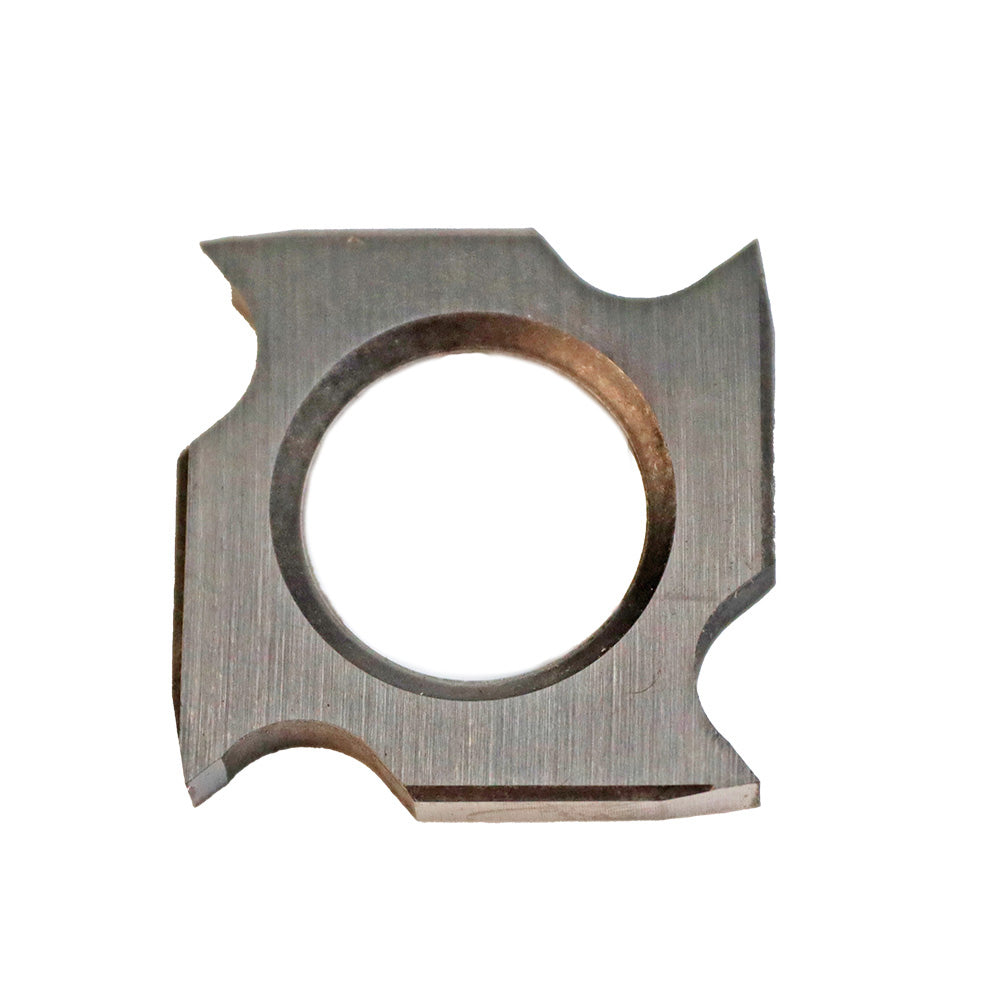

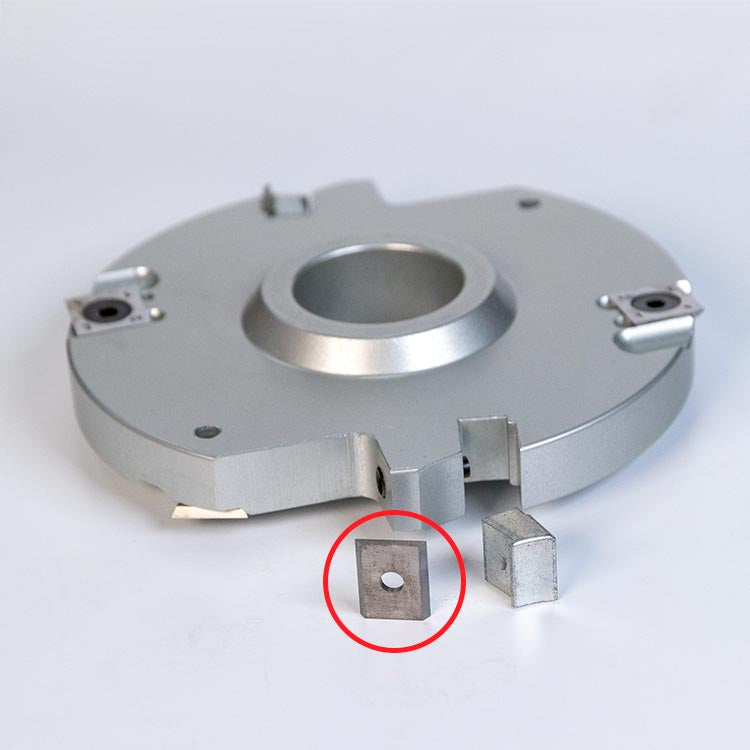

• Four (4) replaceable carbide knife inserts
• 4-3/4" overall diameter
• For stock up to 1-7/8" thick
• 1-1/4" spindle bore
• Don't have a 1-1/4" Spindle? We offer a line of T-Bushings to fit Infinity Tools Shaper Cutters on 3/4" 1/2" and 30mm Spindles.
• Works with Insert-Pro Door Making Systems
  • 84-051 (Ogee)
  • 84-052 (Standard)
  • 84-053 (Bevel & Radius)
  • 84-054 (Chamfer)
  • 84-055 (Art Deco)
