DRILLNADO Drill Press Dust Collection System

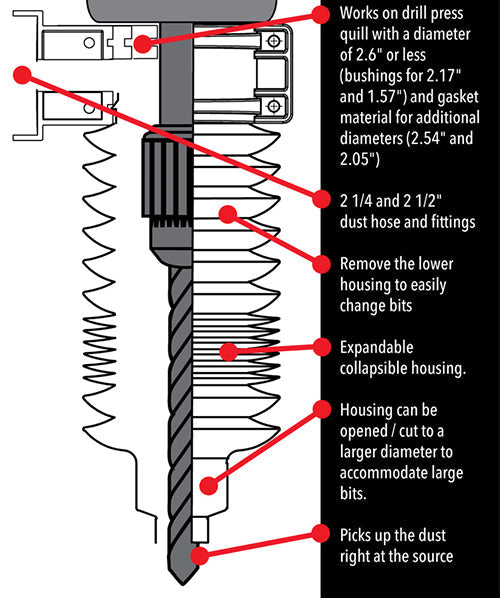

The standard DRILLNADO attaches to drill press quills up to 2.6" in diameter, while the DRILLNADO XL fits quills 2.95" or less in diameter.

The difference is quill capacity: the standard unit fits quills up to 2.6", and the XL fits larger quills up to 2.95". Both share the same bit capacity.

The expandable housing accommodates drill bits up to 1-5/8" in diameter out of the box, and it can be cut to size to accommodate bits up to 3-1/8" diameter.

Yes. It connects to any existing dust collection system or shop vac. See more dust collection options to pair with it.

Traditional collectors can't get suction close enough to the bit, so chips scatter. The DRILLNADO fully surrounds the chuck and bit to capture dust right at the source.

Yes. The expandable housing can be cut to size to accommodate bits up to 3-1/8" in diameter, beyond the 1-5/8" out-of-the-box capacity.

Measure your drill press quill diameter. If it is 2.6" or less, choose the standard DRILLNADO; if it is between 2.6" and 2.95", choose the XL. Browse drill press accessories for more upgrades.

Yes, it is designed to connect to any existing dust collection system or shop vac, so you can tie it into the hoses and fittings you already use.

It addresses the chips and dust that pile up around the drill press, one of the messiest corners of a workshop, by capturing waste at the bit instead of letting it spread across the bench.

Yes. Because the housing can be cut to accept bits up to 3-1/8", it suits larger Forstner and hole-boring work. Explore related drilling & boring tools.
